Gasket sheet Novatec Premium XP 1000x1500x3.0mm
ex stock available
ships within 1-2 days
price 395,00 EUR
short description

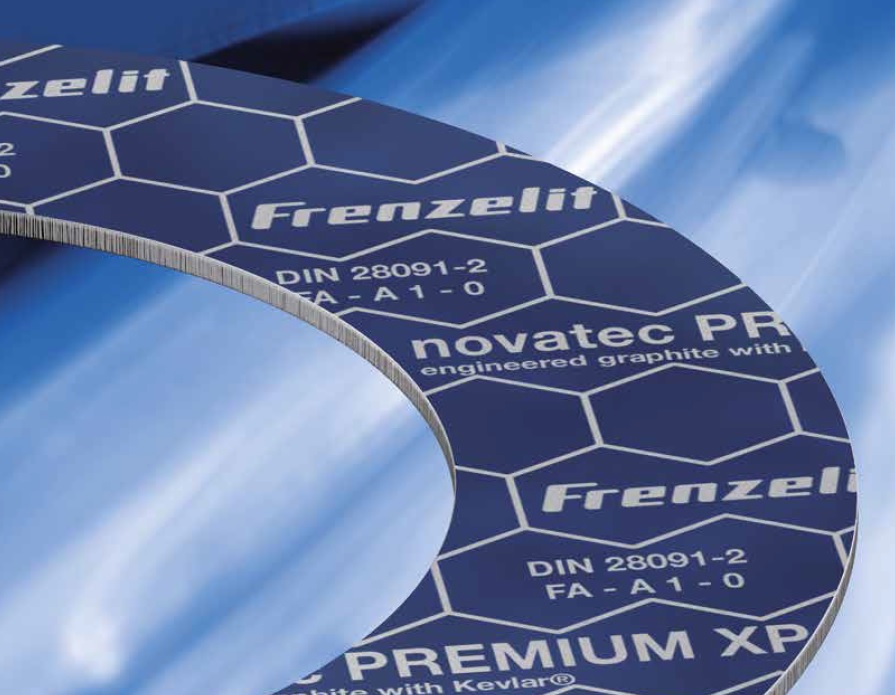

Aramid fibre, NBR-bound graphite sheet
novatecĨ PREMIUM XP is the new and more efficient "Extended Performance" (XP) generation of graphite gaskets reinforced
with aramid fibres that have been developed by Frenzelit. A considerable reduction in leakage and at the same time, excellent
residual stress and chemical resistance levels are achieved thanks to careful graphite structural design and ingenious process
engineering. With novatecĨ PREMIUM XP it is possible to configure gasket systems in accordance with DIN EN 1591-1 with the
sealing category L0.01 as outlined in VDI 2290. In this context, the unique combination of aramid fibres and graphite makes
it possible to standardise gaskets far beyond the existing options with elastomer-bonded fibre gaskets for a wide range of
different applications up to a maximum of 300°C.
article number | DPF-PREM30 |
---|---|
weight | 7,73 kg |
Thickness | 3.0mm |
Dimensions | 1000x1500mm |
